PC->IC serial port interface

The PC serial port uses 12V and usual microcontrollers serial ports use 5V. To convert it, the Max232 is very usefull and I use it for all my boards. You just need 5V (no 12V) that you can get from the microcontroller board.

Schematic:

Layout: max232.wt3 (wintypon)

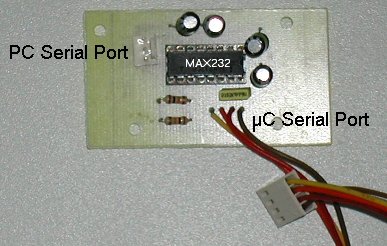

Picture:
